Page 10 - Schut Catalog
P. 10
CALIPERS www.promet.se

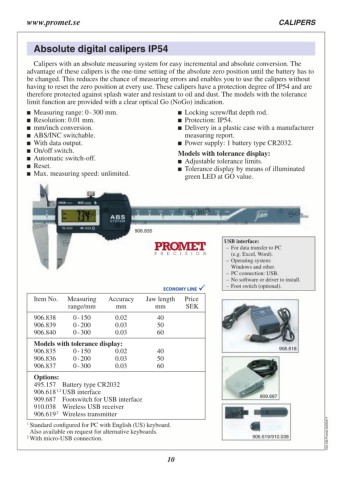

Absolute digital calipers IP54
Calipers with an absolute measuring system for easy incremental and absolute conversion. The
advantage of these calipers is the one-time setting of the absolute zero position until the battery has to
be changed. This reduces the chance of measuring errors and enables you to use the calipers without
having to reset the zero position at every use. These calipers have a protection degree of IP54 and are
therefore protected against splash water and resistant to oil and dust. The models with the tolerance
limit function are provided with a clear optical Go (NoGo) indication.
Measuring range: 0 - 300 mm. Locking screw/flat depth rod.
Resolution: 0.01 mm. Protection: IP54.
mm/inch conversion. Delivery in a plastic case with a manufacturer
ABS/INC switchable.
With data output. measuring report.
On/off switch. Power supply: 1 battery type CR2032.
Automatic switch-off. Models with tolerance display:
Reset. Adjustable tolerance limits.
Max. measuring speed: unlimited. Tolerance display by means of illuminated
green LED at GO value.
906.835
Item No. Measuring Accuracy Jaw length Price USB interface:
range/mm mm mm SEK – For data transfer to PC
906.838 0 - 150 0.02 40 564.00 (e.g. Excel, Word).
906.839 0 - 200 0.03 50 792.00 – Operating system:
906.840 0 - 300 0.03 60 1,032.00
Windows and other.
Models with tolerance display: – PC connection: USB.
906.835 0 - 150 0.02 40 648.00 – No software or driver to install.
906.836 0 - 200 0.03 50 876.00 – Foot switch (optional).
906.837 0 - 300 0.03 60 1,116.00
906.618
Options: 6.00 C02.336.Promet.20240517
495.157 Spare battery type CR2032 924.00 909.687
906.618 1,2 USB interface 222.00
909.687 Footswitch for USB interface 600.00 906.619/910.038
910.038 Wireless USB receiver 624.00
906.619 2 Wireless transmitter Promet Precision 2023/2024-D
1 Standard configured for PC with English (US) keyboard.
Also available on request for alternative keyboards.
2 With micro-USB connection.
© 2024, Schut Geometrische Meettechniek bv 10
