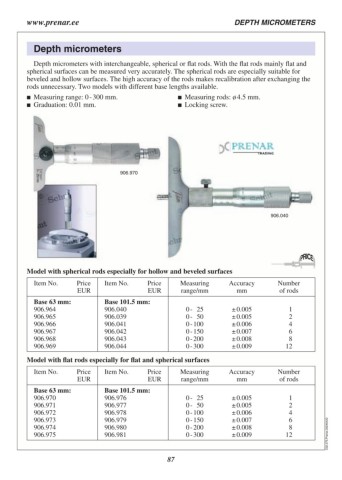

www.prenar.ee DEPTH MICROMETERS
Depth micrometers
Depth micrometers with interchangeable, spherical or flat rods. With the flat rods mainly flat and
spherical surfaces can be measured very accurately. The spherical rods are especially suitable for
beveled and hollow surfaces. The high accuracy of the rods makes recalibration after exchanging the
rods unnecessary. Two models with different base lengths available.
Measuring range: 0 - 300 mm. Measuring rods: ø 4.5 mm.
Graduation: 0.01 mm. Locking screw.
906.970
906.040
Model with spherical rods especially for hollow and beveled surfaces
Item No. Price Item No. Price Measuring Accuracy Number
EUR EUR range/mm mm of rods
1
Base 63 mm: Base 101.5 mm: 0 - 25 ± 0.005 2
906.964 906.040 0 - 50 ± 0.005 4
906.965 906.039 0 - 100 ± 0.006 6
906.966 906.041 0 - 150 ± 0.007 8
906.967 906.042 0 - 200 ± 0.008 12
906.968 906.043 0 - 300 ± 0.009
906.969 906.044 Number
of rods
Model with flat rods especially for flat and spherical surfaces 1
2
Item No. Price Item No. Price Measuring Accuracy 4
EUR EUR range/mm mm 6
8
Base 63 mm: Base 101.5 mm: 0 - 25 ± 0.005 12 C02.275.Prenar.20240422
906.970 906.976 0 - 50 ± 0.005
906.971 906.977 0 - 100 ± 0.006
906.972 906.978 0 - 150 ± 0.007
906.973 906.979 0 - 200 ± 0.008
906.974 906.980 0 - 300 ± 0.009
906.975 906.981
