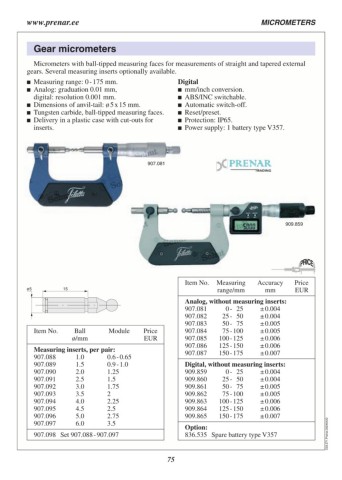

Page 75 - Schut Catalog

www.prenar.ee MICROMETERS

Gear micrometers

Micrometers with ball-tipped measuring faces for measurements of straight and tapered external
gears. Several measuring inserts optionally available.

 Measuring range: 0 - 175 mm. Digital
 Analog: graduation 0.01 mm,  mm/inch conversion.
 ABS/INC switchable.
digital: resolution 0.001 mm.  Automatic switch-off.
 Dimensions of anvil-tail: ø 5 x 15 mm.  Reset/preset.
 Tungsten carbide, ball-tipped measuring faces.  Protection: IP65.
 Delivery in a plastic case with cut-outs for  Power supply: 1 battery type V357.

inserts.

907.081

909.859

Item No. Measuring Accuracy Price
range/mm mm EUR
ø5 15

Item No. Ball Module Price Analog, without measuring inserts:
ø/mm EUR 907.081 0 - 25 ± 0.004
907.082 25 - 50 ± 0.004
Measuring inserts, per pair: 907.083 50 - 75 ± 0.005
907.088 1.0 0.6 - 0.65 907.084 75 - 100 ± 0.005
907.089 1.5 0.9 - 1.0 907.085 100 - 125 ± 0.006
907.090 2.0 1.25 907.086 125 - 150 ± 0.006
907.091 2.5 1.5 907.087 150 - 175 ± 0.007
907.092 3.0 1.75
907.093 3.5 2 Digital, without measuring inserts: C03.271.Prenar.20240422
907.094 4.0 2.25 909.859 0 - 25 ± 0.004
907.095 4.5 2.5 909.860 25 - 50 ± 0.004
907.096 5.0 2.75 909.861 50 - 75 ± 0.005
907.097 6.0 3.5 909.862 75 - 100 ± 0.005
909.863 100 - 125 ± 0.006
909.864 125 - 150 ± 0.006
909.865 150 - 175 ± 0.007

907.098 Set 907.088 - 907.097 Option:
836.535 Spare battery type V357

75
