P. 330

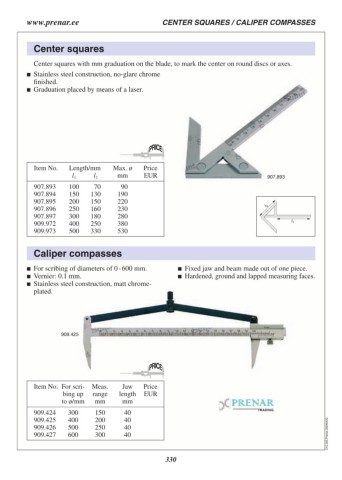

www.prenar.ee CENTER SQUARES / CALIPER COMPASSES
Center squares
Center squares with mm graduation on the blade, to mark the center on round discs or axes.
Stainless steel construction, no-glare chrome
finished.
Graduation placed by means of a laser.
Item No. Length/mm Max. ø Price
l1 l2 mm EUR
907.893
907.893 100 70 90 l2
907.894 150 130 190
907.895 200 150 220 l1
907.896 250 160 230
907.897 300 180 280 Fixed jaw and beam made out of one piece.
909.972 400 250 380 Hardened, ground and lapped measuring faces.
909.973 500 330 530
Caliper compasses
For scribing of diameters of 0 - 600 mm.
Vernier: 0.1 mm.
Stainless steel construction, matt chrome-
plated.
909.425
Item No. For scri- Meas. Jaw Price
bing up range length EUR
to ø/mm mm mm
909.424 300 150 40 C15.205.Prenar.20240422
909.425 400 200 40
909.426 500 250 40
909.427 600 300 40
