www.prenar.ee CALIPERS

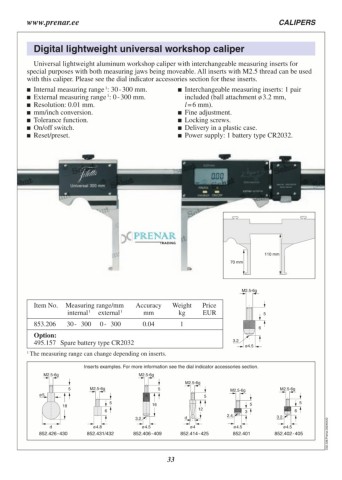

Digital lightweight universal workshop caliper
Universal lightweight aluminum workshop caliper with interchangeable measuring inserts for
special purposes with both measuring jaws being moveable. All inserts with M2.5 thread can be used
with this caliper. Please see the dial indicator accessories section for these inserts.
Internal measuring range 1: 30 - 300 mm. Interchangeable measuring inserts: 1 pair
External measuring range 1: 0 - 300 mm. included (ball attachment ø 3.2 mm,
Resolution: 0.01 mm. l = 6 mm).
mm/inch conversion.
Tolerance function. Fine adjustment.
On/off switch. Locking screws.
Reset/preset. Delivery in a plastic case.
Power supply: 1 battery type CR2032.
110 mm
70 mm
M2.5-6g
Item No. Measuring range/mm Accuracy Weight Price
internal 1 external 1 mm kg EUR
5
853.206 30 - 300 0 - 300 0.04 1
6
Option:
495.157 Spare battery type CR2032 3.2
ø4.5
1 The measuring range can change depending on inserts.
Inserts examples. For more information see the dial indicator accessories section.
M2.5-6g M2.5-6g
5 M2.5-6g 5 M2.5-6g M2.5-6g M2.5-6g
ø5 16
5 3.2 5 5 5
18 6 12 3 6
d 2.4 3.2
d C02.338.Prenar.20240422
852.426 - 430 ø4.8 ø4.5 ø4 ø4.5 ø4.5
852.431/432 852.406 - 409 852.414 - 425 852.401 852.402 - 405
33
