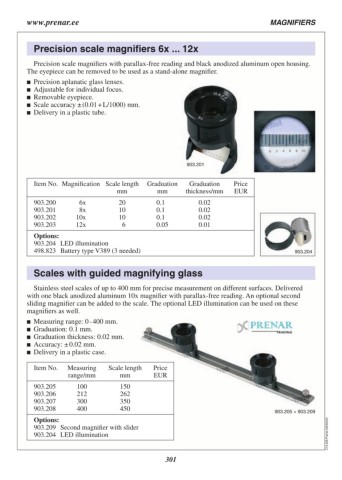

P. 301
www.prenar.ee MAGNIFIERS
Precision scale magnifiers 6x ... 12x
Precision scale magnifiers with parallax-free reading and black anodized aluminum open housing.
The eyepiece can be removed to be used as a stand-alone magnifier.
Precision aplanatic glass lenses.
Adjustable for individual focus.
Removable eyepiece.
Scale accuracy ± (0.01 + L/1000) mm.
Delivery in a plastic tube.
903.201
Item No. Magnification Scale length Graduation Graduation Price
mm mm thickness/mm EUR
903.200 6x 20 0.1 0.02
903.201 8x 10 0.1 0.02
903.202 10x 10 0.1 0.02
903.203 12x 6 0.05 0.01
Options: 903.204
903.204 LED illumination
498.823 Battery type V389 (3 needed)
Scales with guided magnifying glass
Stainless steel scales of up to 400 mm for precise measurement on different surfaces. Delivered
with one black anodized aluminum 10x magnifier with parallax-free reading. An optional second
sliding magnifier can be added to the scale. The optional LED illumination can be used on these
magnifiers as well.
Measuring range: 0 - 400 mm.
Graduation: 0.1 mm.
Graduation thickness: 0.02 mm.
Accuracy: ± 0.02 mm.
Delivery in a plastic case.
Item No. Measuring Scale length Price
range/mm mm EUR
903.205 100 150 903.205 + 903.209
903.206 212 262
903.207 300 350
903.208 400 450
Options: C13.326.Prenar.20240422
903.209 Second magnifier with slider
903.204 LED illumination
301
