www.prenar.ee                                                           CLINOMETERS

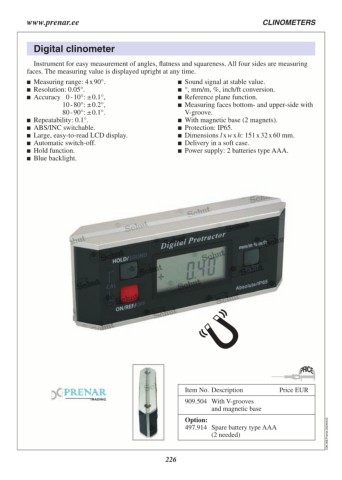

Digital clinometer

  Instrument for easy measurement of angles, flatness and squareness. All four sides are measuring
faces. The measuring value is displayed upright at any time.

	 Measuring range: 4 x 90°.              	 Sound signal at stable value.
	 Resolution: 0.05°.                     	 °, mm/m, %, inch/ft conversion.
	 Accuracy   0 - 10°: ± 0.1°,            	 Reference plane function.
                                          	 Measuring faces bottom- and upper-side with
  	 10 - 80°: ± 0.2°,
  	 80 - 90°: ± 0.1°.                       V‑groove.
	 Repeatability: 0.1°.                   	 With magnetic base (2 magnets).
	 ABS/INC switchable.                    	 Protection: IP65.
	 Large, easy-to-read LCD display.       	 Dimensions l x w x h: 151 x 32 x 60 mm.
	 Automatic switch-off.                  	 Delivery in a soft case.
	 Hold function.                         	 Power supply: 2 batteries type AAA.
	 Blue backlight.

                                          Item No. Description            Price EUR

                                          909.504 With V‑grooves
                                                     and magnetic base

                                          Option:                                                   C08.308.Prenar.20240422
                                          497.914 Spare battery type AAA

                                                     (2 needed)
