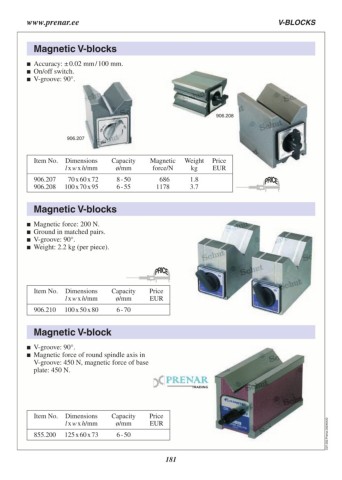

Page 181 - Schut Catalog
P. 181
www.prenar.ee V-BLOCKS
Magnetic V‑blocks
Accuracy: ± 0.02 mm / 100 mm.
On/off switch.
V‑groove: 90°.
906.208
906.207
Item No. Dimensions Capacity Magnetic Weight Price
l x w x h/mm ø/mm force/N kg EUR
906.207 70 x 60 x 72 8 - 50 686 1.8
906.208 100 x 70 x 95 6 - 55 1178 3.7
Magnetic V‑blocks
Magnetic force: 200 N.
Ground in matched pairs.
V‑groove: 90°.
Weight: 2.2 kg (per piece).
Item No. Dimensions Capacity Price
l x w x h/mm ø/mm EUR
906.210 100 x 50 x 80 6 - 70
Magnetic V‑block
V‑groove: 90°.
Magnetic force of round spindle axis in
V‑groove: 450 N, magnetic force of base
plate: 450 N.
Item No. Dimensions Capacity Price C07.202.Prenar.20240422
l x w x h/mm ø/mm EUR
855.200 125 x 60 x 73 6 - 50
181
