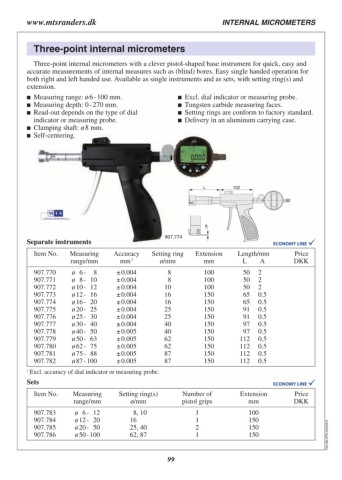

www.mtsranders.dk INTERNAL MICROMETERS
Three-point internal micrometers
Three-point internal micrometers with a clever pistol-shaped base instrument for quick, easy and
accurate measurements of internal measures such as (blind) bores. Easy single handed operation for
both right and left handed use. Available as single instruments and as sets, with setting ring(s) and
extension.
Measuring range: ø 6 - 100 mm. Excl. dial indicator or measuring probe.
Measuring depth: 0 - 270 mm. Tungsten carbide measuring faces.
Read-out depends on the type of dial Setting rings are conform to factory standard.
Delivery in an aluminum carrying case.
indicator or measuring probe.
Clamping shaft: ø 8 mm.
Self-centering.
L 102
A
Separate instruments 907.774
Item No. Measuring Accuracy Setting ring Extension Length/mm Price
range/mm mm 1 ø/mm mm L A DKK
Price
907.770 ø 6 - 8 ± 0.004 8 100 50 2 DKK
907.771 ø 8 - 10 ± 0.004 8 100 50 2
907.772 ø 10 - 12 ± 0.004 10 100 50 2
907.773 ø 12 - 16 ± 0.004 16 150 65 0.5
907.774 ø 16 - 20 ± 0.004 16 150 65 0.5
907.775 ø 20 - 25 ± 0.004 25 150 91 0.5
907.776 ø 25 - 30 ± 0.004 25 150 91 0.5
907.777 ø 30 - 40 ± 0.004 40 150 97 0.5
907.778 ø 40 - 50 ± 0.005 40 150 97 0.5
907.779 ø 50 - 63 ± 0.005 62 150 112 0.5
907.780 ø 62 - 75 ± 0.005 62 150 112 0.5
907.781 ø 75 - 88 ± 0.005 87 150 112 0.5
907.782 ø 87 - 100 ± 0.005 87 150 112 0.5
1 Excl. accuracy of dial indicator or measuring probe.
Sets
Item No. Measuring Setting ring(s) Number of Extension
range/mm ø/mm pistol grips mm
907.783 ø 6 - 12 8, 10 1 100 C04.302.MTS.20250410
907.784 ø 12 - 20 16 1 150
907.785 ø 20 - 50 25, 40 2 150
907.786 ø 50 - 100 62, 87 1 150
