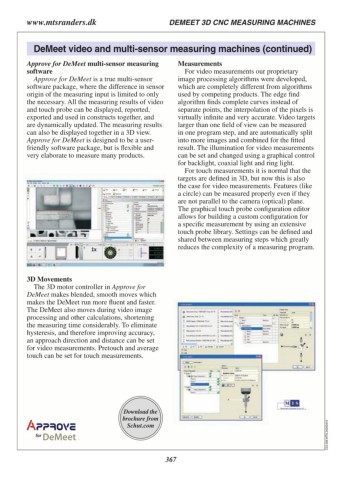

www.mtsranders.dk DEMEET 3D CNC MEASURING MACHINES
DeMeet video and multi-sensor measuring machines (continued)
Approve for DeMeet multi-sensor measuring Measurements
software For video measurements our proprietary
Approve for DeMeet is a true multi-sensor image processing algorithms were developed,
software package, where the difference in sensor which are completely different from algorithms
origin of the measuring input is limited to only used by competing products. The edge find
the necessary. All the measuring results of video algorithm finds complete curves instead of
and touch probe can be displayed, reported, separate points, the interpolation of the pixels is
exported and used in constructs together, and virtually infinite and very accurate. Video targets
are dynamically updated. The measuring results larger than one field of view can be measured
can also be displayed together in a 3D view. in one program step, and are automatically split
Approve for DeMeet is designed to be a user- into more images and combined for the fitted
friendly software package, but is flexible and result. The illumination for video measurements
very elaborate to measure many products. can be set and changed using a graphical control
for backlight, coaxial light and ring light.
For touch measurements it is normal that the
targets are defined in 3D, but now this is also
the case for video measurements. Features (like
a circle) can be measured properly even if they
are not parallel to the camera (optical) plane.
The graphical touch probe configuration editor
allows for building a custom configuration for
a specific measurement by using an extensive
touch probe library. Settings can be defined and
shared between measuring steps which greatly
reduces the complexity of a measuring program.
3D Movements
The 3D motor controller in Approve for
DeMeet makes blended, smooth moves which
makes the DeMeet run more fluent and faster.
The DeMeet also moves during video image
processing and other calculations, shortening
the measuring time considerably. To eliminate
hysteresis, and therefore improving accuracy,
an approach direction and distance can be set
for video measurements. Pretouch and average
touch can be set for touch measurements.
