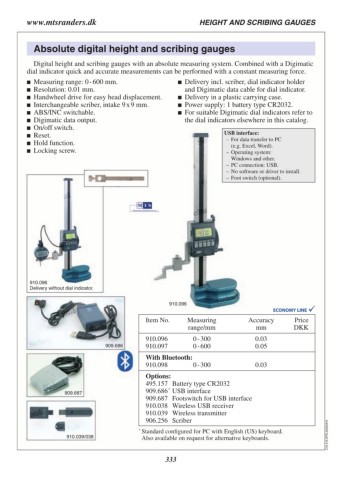

www.mtsranders.dk HEIGHT AND SCRIBING GAUGES

Absolute digital height and scribing gauges

Digital height and scribing gauges with an absolute measuring system. Combined with a Digimatic
dial indicator quick and accurate measurements can be performed with a constant measuring force.

 Measuring range: 0 - 600 mm.  Delivery incl. scriber, dial indicator holder
 Resolution: 0.01 mm. and Digimatic data cable for dial indicator.
 Handwheel drive for easy head displacement.
 Interchangeable scriber, intake 9 x 9 mm.  Delivery in a plastic carrying case.
 ABS/INC switchable.  Power supply: 1 battery type CR2032.
 Digimatic data output.  For suitable Digimatic dial indicators refer to
 On/off switch.
 Reset. the dial indicators elsewhere in this catalog.
 Hold function.
 Locking screw. USB interface:
– For data transfer to PC

(e.g. Excel, Word).
– Operating system:

Windows and other.
– PC connection: USB.
– No software or driver to install.
– Foot switch (optional).

910.096 910.096
Delivery without dial indicator.
Item No. Measuring Accuracy Price
909.686 range/mm mm DKK
909.687
910.039/038 910.096 0 - 300 0.03
910.097 0 - 600 0.05

With Bluetooth:
910.098 0 - 300 0.03

Options: C16.315.MTS.20250410
495.157 Battery type CR2032
909.686 * USB interface
909.687 Footswitch for USB interface
910.038 Wireless USB receiver
910.039 Wireless transmitter
906.256 Scriber

* Standard configured for PC with English (US) keyboard.
Also available on request for alternative keyboards.
