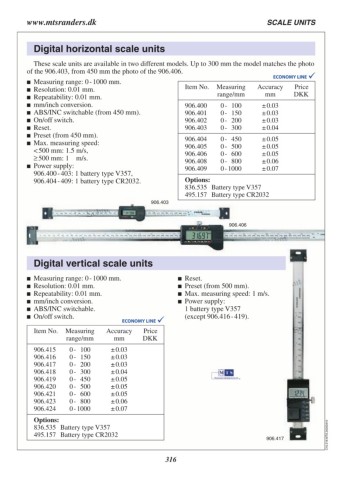

Page 316 - Schut Catalog
P. 316
www.mtsranders.dk SCALE UNITS
Digital horizontal scale units
These scale units are available in two different models. Up to 300 mm the model matches the photo
of the 906.403, from 450 mm the photo of the 906.406.
Measuring range: 0 - 1000 mm. Item No. Measuring Accuracy Price
Resolution: 0.01 mm. range/mm mm DKK
Repeatability: 0.01 mm.
mm/inch conversion. 906.400 0 - 100 ± 0.03
ABS/INC switchable (from 450 mm). 906.401 0 - 150 ± 0.03
On/off switch. 906.402 0 - 200 ± 0.03
Reset. 906.403 0 - 300 ± 0.04
Preset (from 450 mm).
Max. measuring speed: 906.404 0 - 450 ± 0.05
906.405 0 - 500 ± 0.05
< 500 mm: 1.5 m/s, 906.406 0 - 600 ± 0.05
≥ 500 mm: 1 m/s. 906.408 0 - 800 ± 0.06
Power supply: 906.409 0 - 1000 ± 0.07
906.400 - 403: 1 battery type V357,
906.404 - 409: 1 battery type CR2032. Options:
836.535 Battery type V357
906.403 495.157 Battery type CR2032
906.406
Digital vertical scale units
Measuring range: 0 - 1000 mm. Reset.
Resolution: 0.01 mm. Preset (from 500 mm).
Repeatability: 0.01 mm. Max. measuring speed: 1 m/s.
mm/inch conversion. Power supply:
ABS/INC switchable.
On/off switch. 1 battery type V357
(except 906.416 - 419).
Item No. Measuring Accuracy Price
range/mm mm DKK 906.417
906.415 0 - 100 ± 0.03
906.416 0 - 150 ± 0.03
906.417 0 - 200 ± 0.03
906.418 0 - 300 ± 0.04
906.419 0 - 450 ± 0.05
906.420 0 - 500 ± 0.05
906.421 0 - 600 ± 0.05
906.423 0 - 800 ± 0.06
906.424 0 - 1000 ± 0.07
Options: C16.218.MTS.20250410
836.535 Battery type V357
495.157 Battery type CR2032
