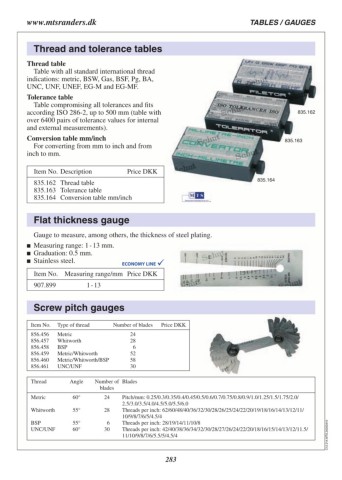

www.mtsranders.dk TABLES / GAUGES

Thread and tolerance tables 835.162
835.163
Thread table 835.164
Table with all standard international thread

indications: metric, BSW, Gas, BSF, Pg, BA,
UNC, UNF, UNEF, EG-M and EG-MF.
Tolerance table

Table compromising all tolerances and fits
according ISO 286‑2, up to 500 mm (table with
over 6400 pairs of tolerance values for internal
and external measurements).
Conversion table mm/inch

For converting from mm to inch and from
inch to mm.

Item No. Description Price DKK

835.162 Thread table
835.163 Tolerance table
835.164 Conversion table mm/inch

Flat thickness gauge

Gauge to measure, among others, the thickness of steel plating.
 Measuring range: 1 - 13 mm.
 Graduation: 0.5 mm.
 Stainless steel.

Item No. Measuring range/mm Price DKK

907.899 1 - 13

Screw pitch gauges

Item No. Type of thread Number of blades Price DKK

856.456 Metric 24
856.457 Whitworth 28
856.458 BSP 6
856.459 Metric/Whitworth 52
856.460 Metric/Whitworth/BSP 58
856.461 UNC/UNF 30

Thread Angle Number of Blades C12.214.MTS.20250410
blades
Metric 60°
Whitworth 55° 24 Pitch/mm: 0.25/0.3/0.35/0.4/0.45/0.5/0.6/0.7/0.75/0.8/0.9/1.0/1.25/1.5/1.75/2.0/
BSP 55° 2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0
UNC/UNF 60°
28 Threads per inch: 62/60/48/40/36/32/30/28/26/25/24/22/20/19/18/16/14/13/12/11/
10/9/8/7/6/5/4.5/4

6 Threads per inch: 28/19/14/11/10/8
30 Threads per inch: 42/40/38/36/34/32/30/28/27/26/24/22/20/18/16/15/14/13/12/11.5/

11/10/9/8/7/6/5.5/5/4.5/4

283
