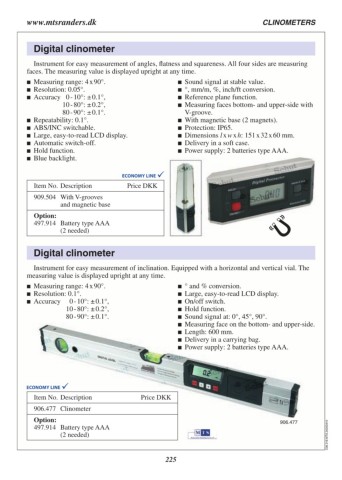

P. 225
www.mtsranders.dk CLINOMETERS
Digital clinometer
Instrument for easy measurement of angles, flatness and squareness. All four sides are measuring
faces. The measuring value is displayed upright at any time.
Measuring range: 4 x 90°. Sound signal at stable value.
Resolution: 0.05°. °, mm/m, %, inch/ft conversion.
Accuracy 0 - 10°: ± 0.1°, Reference plane function.
Measuring faces bottom- and upper-side with
10 - 80°: ± 0.2°,
80 - 90°: ± 0.1°. V‑groove.
Repeatability: 0.1°. With magnetic base (2 magnets).
ABS/INC switchable. Protection: IP65.
Large, easy-to-read LCD display. Dimensions l x w x h: 151 x 32 x 60 mm.
Automatic switch-off. Delivery in a soft case.
Hold function. Power supply: 2 batteries type AAA.
Blue backlight.
Item No. Description Price DKK
909.504 With V‑grooves
and magnetic base
Option:
497.914 Battery type AAA
(2 needed)
Digital clinometer
Instrument for easy measurement of inclination. Equipped with a horizontal and vertical vial. The
measuring value is displayed upright at any time.
Measuring range: 4 x 90°. ° and % conversion.
Resolution: 0.1°. Large, easy-to-read LCD display.
Accuracy 0 - 10°: ± 0.1°, On/off switch.
Hold function.
10 - 80°: ± 0.2°, Sound signal at: 0°, 45°, 90°.
80 - 90°: ± 0.1°. Measuring face on the bottom- and upper-side.
Length: 600 mm.
Delivery in a carrying bag.
Power supply: 2 batteries type AAA.
Item No. Description Price DKK 906.477 C08.318.MTS.20250410
906.477 Clinometer 225
Option:
497.914 Battery type AAA
(2 needed)
