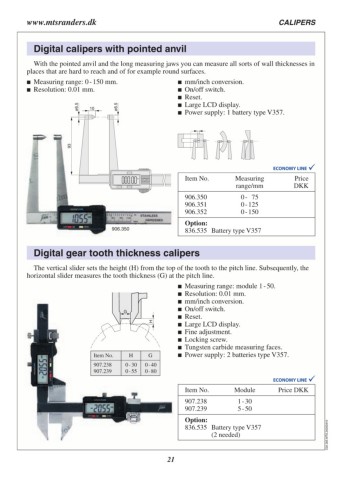

Page 21 - Schut Catalog

www.mtsranders.dk CALIPERS

Digital calipers with pointed anvil

With the pointed anvil and the long measuring jaws you can measure all sorts of wall thicknesses in
places that are hard to reach and of for example round surfaces.

 Measuring range: 0 - 150 mm.ø6.5 ø6.5  mm/inch conversion.
 Resolution: 0.01 mm.  On/off switch.
 Reset.
10  Large LCD display.
 Power supply: 1 battery type V357.

93

mm Item No. Measuring Price
range/mm DKK
906.350
906.350 0 - 75
906.351 0 - 125
906.352 0 - 150

Option:
836.535 Battery type V357

Digital gear tooth thickness calipers

The vertical slider sets the height (H) from the top of the tooth to the pitch line. Subsequently, the
horizontal slider measures the tooth thickness (G) at the pitch line.

G H  Measuring range: module 1 - 50.
 Resolution: 0.01 mm.
Item No. H G  mm/inch conversion.
 On/off switch.
 Reset.
 Large LCD display.
 Fine adjustment.
 Locking screw.
 Tungsten carbide measuring faces.
 Power supply: 2 batteries type V357.

907.238 0 - 30 0 - 40
907.239 0 - 55 0 - 80

Item No. Module Price DKK

907.238 1 - 30
907.239 5 - 50

Option: C02.365.MTS.20250410
836.535 Battery type V357

(2 needed)

21
