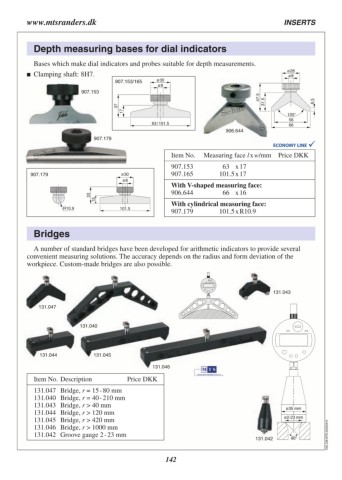

P. 142
www.mtsranders.dk INSERTS
Depth measuring bases for dial indicators
Bases which make dial indicators and probes suitable for depth measurements.
Clamping shaft: 8H7. ø30 ø28
ø8 ø8
907.153
907.153/165
37 47.5
17 31.5
6.5
63 / 101.5 120°
56
66
906.644
907.179
Item No. Measuring face l x w/mm Price DKK
907.179 ø30 907.153 63 x 17
R10.9 ø8 907.165 101.5 x 17
101.5 With V-shaped measuring face:
906.644 66 x 16
33
15 With cylindrical measuring face:
907.179 101.5 x R10.9
Bridges
A number of standard bridges have been developed for arithmetic indicators to provide several
convenient measuring solutions. The accuracy depends on the radius and form deviation of the
workpiece. Custom-made bridges are also possible.
131.043
131.047
131.040
131.044 131.045
131.046
Item No. Description Price DKK
131.047 Bridge, r = 15 - 80 mm ø35 mm
131.040 Bridge, r = 40 - 210 mm ø2-23 mm
131.043 Bridge, r > 40 mm
131.044 Bridge, r > 120 mm 131.042 90° C05.338.MTS.20250410
131.045 Bridge, r > 420 mm
131.046 Bridge, r > 1000 mm
131.042 Groove gauge 2 - 23 mm
142
