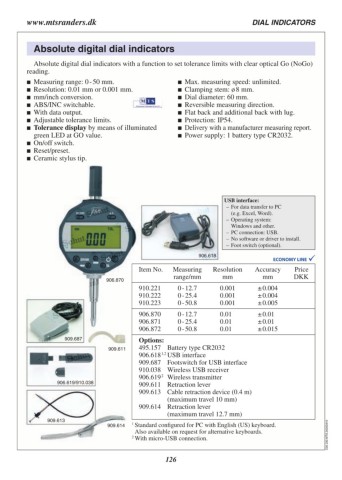

Page 126 - Schut Catalog

www.mtsranders.dk DIAL INDICATORS

Absolute digital dial indicators

Absolute digital dial indicators with a function to set tolerance limits with clear optical Go (NoGo)
reading.

 Measuring range: 0 - 50 mm.  Max. measuring speed: unlimited.
 Resolution: 0.01 mm or 0.001 mm.  Clamping stem: ø 8 mm.
 mm/inch conversion.  Dial diameter: 60 mm.
 ABS/INC switchable.  Reversible measuring direction.
 With data output.  Flat back and additional back with lug.
 Adjustable tolerance limits.  Protection: IP54.
 Tolerance display by means of illuminated  Delivery with a manufacturer measuring report.
 Power supply: 1 battery type CR2032.
green LED at GO value.
 On/off switch.
 Reset/preset.
 Ceramic stylus tip.

USB interface:
– For data transfer to PC

(e.g. Excel, Word).
– Operating system:

Windows and other.
– PC connection: USB.
– No software or driver to install.
– Foot switch (optional).

906.618

Item No. Measuring Resolution Accuracy Price
range/mm mm mm DKK
906.870

910.221 0 - 12.7 0.001 ± 0.004
910.222 0 - 25.4 0.001 ± 0.004
910.223 0 - 50.8 0.001 ± 0.005

906.870 0 - 12.7 0.01 ± 0.01
906.871 0 - 25.4 0.01 ± 0.01
906.872 0 - 50.8 0.01 ± 0.015

909.687 909.611 Options:
906.619/910.038 495.157 Battery type CR2032
909.613 906.618 1,2 USB interface
909.687 Footswitch for USB interface
910.038 Wireless USB receiver
906.619 2 Wireless transmitter
909.611 Retraction lever
909.613 Cable retraction device (0.4 m)

(maximum travel 10 mm)
909.614 Retraction lever

(maximum travel 12.7 mm)

909.614 1 Standard configured for PC with English (US) keyboard. C05.330.MTS.20250410
Also available on request for alternative keyboards.
2 With micro-USB connection.
