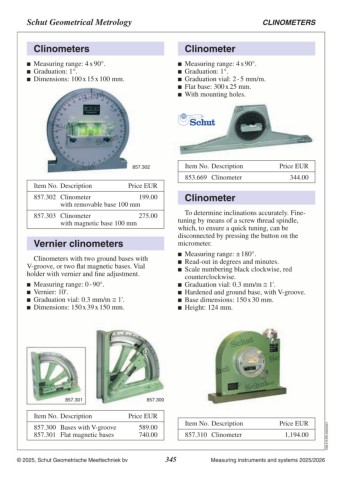

P. 345
Schut Geometrical Metrology CLINOMETERS
Clinometers Clinometer
Measuring range: 4 x 90°. Measuring range: 4 x 90°.
Graduation: 1°. Graduation: 1°.
Dimensions: 100 x 15 x 100 mm. Graduation vial: 2 - 5 mm/m.
Flat base: 300 x 25 mm.
With mounting holes.
857.302 Item No. Description Price EUR
853.669 Clinometer 344.00
Item No. Description Price EUR
857.302 Clinometer 199.00 Clinometer
with removable base 100 mm
To determine inclinations accurately. Fine-
857.303 Clinometer 275.00 tuning by means of a screw thread spindle,
with magnetic base 100 mm which, to ensure a quick tuning, can be
disconnected by pressing the button on the
Vernier clinometers micrometer.
Measuring range: ± 180°.
Clinometers with two ground bases with Read-out in degrees and minutes.
V‑groove, or two flat magnetic bases. Vial Scale numbering black clockwise, red
holder with vernier and fine adjustment.
Measuring range: 0 - 90°. counterclockwise.
Vernier: 10'. Graduation vial: 0.3 mm/m ≅ 1'.
Graduation vial: 0.3 mm/m ≅ 1'. Hardened and ground base, with V‑groove.
Dimensions: 150 x 39 x 150 mm. Base dimensions: 150 x 30 mm.
Height: 124 mm.
857.301 857.300 Item No. Description Price EUR C08.215.EN.20250321
857.310 Clinometer 1,194.00
Item No. Description Price EUR
857.300 Bases with V‑groove 589.00
857.301 Flat magnetic bases 740.00
© 2025, Schut Geometrische Meettechniek bv 345 Measuring instruments and systems 2025/2026
