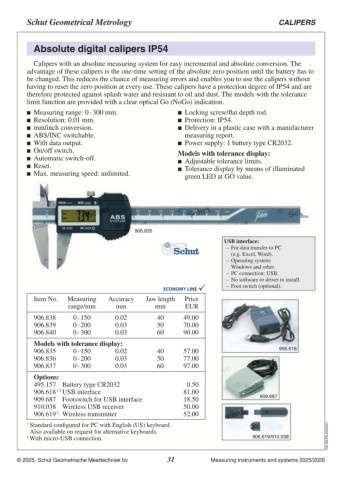

P. 31

Schut Geometrical Metrology                                        CALIPERS

Absolute digital calipers IP54

  Calipers with an absolute measuring system for easy incremental and absolute conversion. The
advantage of these calipers is the one-time setting of the absolute zero position until the battery has to
be changed. This reduces the chance of measuring errors and enables you to use the calipers without
having to reset the zero position at every use. These calipers have a protection degree of IP54 and are
therefore protected against splash water and resistant to oil and dust. The models with the tolerance
limit function are provided with a clear optical Go (NoGo) indication.

	 Measuring range: 0 - 300 mm.                             	 Locking screw/flat depth rod.
	 Resolution: 0.01 mm.                                     	 Protection: IP54.
	 mm/inch conversion.                                      	 Delivery in a plastic case with a manufacturer
	 ABS/INC switchable.
	 With data output.                                          measuring report.
	 On/off switch.                                           	 Power supply: 1 battery type CR2032.
	 Automatic switch-off.                                    Models with tolerance display:
	 Reset.                                                   	 Adjustable tolerance limits.
	 Max. measuring speed: unlimited.                         	 Tolerance display by means of illuminated

                                                              green LED at GO value.

                                            906.835

Item No. Measuring 	 Accuracy 	 Jaw length 	 Price                 USB interface:
range/mm  mm                                         mm EUR         – For data transfer to PC

906.838 	 0	-	150 	 0.02 	 40                               47.00     (e.g. Excel, Word).
906.839 	 0	-	200 	 0.03 	 50                               66.00   – Operating system:
906.840 	 0	-	300 	 0.03 	 60                               86.00
                                                                      Windows and other.
Models with tolerance display:                              54.00   – PC connection: USB.
906.835 	 0	-	150 	 0.02 	 40                               73.00   – No software or driver to install.
906.836 	 0	-	200 	 0.03 	 50                               93.00   – Foot switch (optional).
906.837 	 0	-	300 	 0.03 	 60
                                                                                                     906.618
Options:                                                     0.50
495.157 Spare battery type CR2032                           77.00                        909.687
906.618 1,2 USB interface                                   18.50
909.687 Footswitch for USB interface                        50.00                   906.619/910.038
910.038 Wireless USB receiver                               52.00
906.619 2 Wireless transmitter

1	Standard configured for PC with English (US) keyboard. 	                                                     C02.336.EN.20240625
 Also available on request for alternative keyboards.
2	With micro-USB connection.

© 2024, Schut Geometrische Meettechniek bv           31 Measuring instruments and systems 2023/2024
